Brand Name : | Daxian |
Model Number : | DX2023 |
Certification : | EN14683-2019、ISO22609、ASTMF2100-19、ASTMF1862/F1862M-17 |
Price : | Negotiation |
Payment Terms : | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash |
Supply Ability : | 15 sets per month |
Delivery Time : | 15work days |
Application:

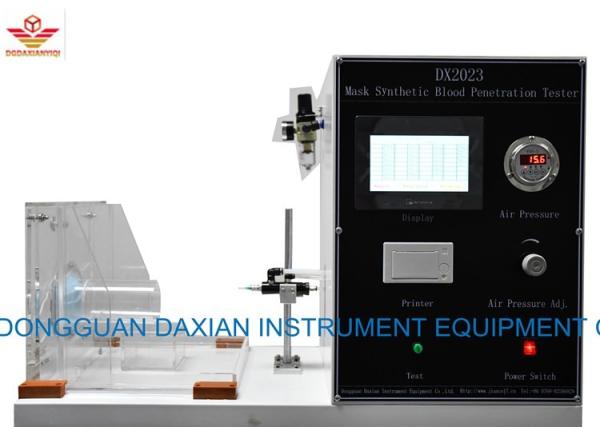

The main purpose of the mask synthetic blood penetration tester a
certain amount of synthetic blood is sprayed horizontally on one
side of the mask under test with a certain pressure and distance,
and the penetration of the synthetic blood on the other side of the
mask is observed.
Equipment standard:
GB 19083-2010 ,YY/T 0691-2008,YY 0469-2011.
Technical index:
Spraying distance | adjustable from 300mm to 305mm |
Nozzle diameter | 0.84mm |
Injection pressure point | 10.7kPa (80 mmHg), 16 kPa (120 mmHg), 21.3 kPa (160 mmHg) |
Spraying speed | 450cm / s, 550cm / s, 635cm / s |
Including air pressure source | 1 set of air compressor |
Test procedure:
1. Set Fluid velocities: 450cm/s, Fluid pressure: 10.6kPa,
2. Spurt volume: 2.00ml
3. Pressurization
4. Drain
5. Add liquid 1L
6. Press stop to clear
![]() |
