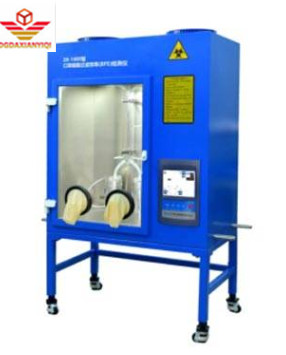

Mouth Mask Bacterial Filtration Efficiency BFE Detector ASTMF2299/F2 1 Year Warranty

Ask Lasest Price
Brand Name :	Daxian
Model Number :	DX2030
Certification :	ASTMF2101, EN14683-2014、、ASTMF2299/F2
Price :	Negotiation
Payment Terms :	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability :	15 sets per month
Delivery Time :	15work days

Add to Cart

Product Details
Company Profile

Mouth Mask Bacterial Filtration Efficiency BFE Detector ASTMF2299/F2 1 Year Warranty

ASTMF2101 Mask Bacterial Filtration Efficiency BFE Detector of Medical Face Mask Materials ,ASTMF2299/F2

Product overview:

Medical external mask bacterial filtration efficiency (BFE) detector

Standards:

- ASTMF2101

- ASTMF2299/F2

Technical Parameters:

Technical characteristics of mask bacterial filtration efficiency (BFE) detector

2.1 Negative pressure experiment system to ensure the safety of operators;

2.2 Built-in peristaltic pump in negative pressure cabinet, A and B two-stage six-stage Andersen;

2.3 Flow rate of peristaltic pump can be set;

2.4 Dedicated microbial aerosol generator can be set at night.

2.5 atomization effect is good;

2.6 Embedded high-speed industrial microcomputer control;

2.7 10.4-inch industrial-grade high-brightness color touch display;

2.8 USB interface, support U disk data transfer;

2.9 Cabinet with built-in high-brightness lighting;

2.10 Built-in leakage protection switch to protect operator safety;

2.11 The inner layer of the stainless steel is integrally processed and formed, and the outer layer is spray-coated cold-rolled sheet

2.12 Insulation and flame retardant between inner and outer layers;

2.13 front switch glass door, convenient for experimenters to observe and operate;

Technical index:

Main parameters	Parameter range	Resolution	Maximum allowable error
A channel sampling flow rate	28.3L/min	0.1L/min	better than ±2.5%
B channel sampling flow rate	28.3L/min	0.1L/min	better than ±2.5%
Spray flow	(8～10)L/min	0.1L/min	better than ±5.0%
Peristaltic pump flow	(0.006～3.0)mL/min	0.001ml/min	better than ±2.5%
Front pressure of channel A	(-20～0)kPa	0.01kPa	better than ±2.5%
Front pressure of channel B	(-20～0)kPa	0.01kPa	better than ±2.5%
Pressure before spray flowmeter	(0～300)kPa	0.1kPa	better than ±2.5%
Aerosol chamber negative pressure	(-90～-120)Pa	0.1Pa	better than ±2.0%
Operating temperature	(0～50)℃
Cabinet negative pressure	(-50～-200)Pa
Data storage capacity	＞100000 groups
HEPA filter characteristics	Filtration efficiency for particles above 0.3um ≥99.99%
Aerosol generator mass median diameter	Average particle diameter (3.0 ± 0.3) μm, geometric standard deviation ≤1.5
Dual 6-stage Anderson sampler captures particle size	Ⅰ＞7μm,Ⅱ(4.7～7)μm,Ⅲ(3.3～4.7)μm,Ⅳ(2.1～3.3)μm,Ⅴ(1.1～2.1)μm,Ⅵ(0.6～1.1)μm
Aerosol chamber specifications	(Length 600 x diameter 85 x thickness 3) mm
Total number of positive QC sampler particles	(2200±500)cfu
Negative pressure cabinet ventilation flow	≥5m3/min
