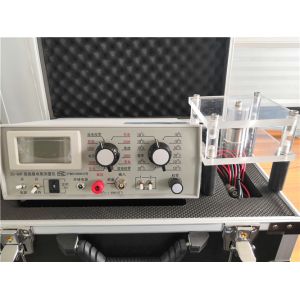

Insulation Material Surface Resistance Tester IEC60243-1 Standard

Ask Lasest Price
Brand Name :	DAXIAN
Model Number :	DX8488
Certification :	ASTM D257-2007, IEC60243-1
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	15 sets per month
Delivery Time :	20 days after order confirmed

Add to Cart

Product Details
Company Profile

Insulation Material Surface Resistance Tester IEC60243-1 Standard

Insulation Material Volume Resistance Tester

Standards:

- ASTM D257-2007

Introduction:

It is suitable for measuring the insulation resistance of rubber and plastics used in high resistance insulating materials, electrical products, various components and wires and cables. The optional electrode box can measure the surface resistance and volume resistance of insulating materials.

Main technical indicators:

Testing voltage	100V,250V,500V,1000V adjustable
Range of resistance measurement	1×10e6~2×10e12Ω
Time setting	0~99S adjustable
Power supply	AC220V 50 HZ
Outer size	500×350×250(mm)
The alarm value	1~9999(MΩ)
Measuring range	1~9999(MΩ),±5%

Calibration of instrument :

Turn the high voltage (zero) selector switch (10) to the "discharge zero" (.000) gear. The "discharge zero" (.000) gear adjacent to the selected measuring voltage should be selected to enter the measuring position in one step.
