DL/T864-201 Rubber Testing Equipment Silicone Insulator Surface Wettability Measurement

Ask Lasest Price
Brand Name :	DAXIAN
Model Number :	DX8436
Certification :	DL/T864-201，IEC 62073 IEC_TS 62073-2016
Price :	Negotiation
Payment Terms :	L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability :	15 sets per month
Delivery Time :	5 work days

Add to Cart

Product Details
Company Profile

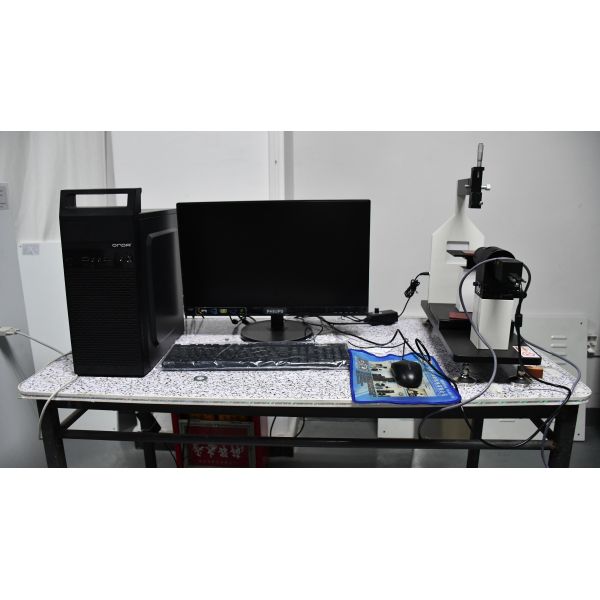

DL/T864-201 Rubber Testing Equipment Silicone Insulator Surface Wettability Measurement

DL/T864-201 Silicone Rubber Insulator Surface Wettability Measurement, Static Contact Angle Rubber Testing Equipment

Application:

This machine is an entry-level static contact angle analyzer that is affordable and easy to operate. It measures the contact angle of a liquid on a solid surface based on the principle of optical image analysis. It can also estimate the surface energy of a solid and its component values. It is widely used in the analysis of surface treatment effect and cleanliness of spraying, coating, glass, aluminum foil, electronic components and cleaning industries.

Standards:

- DL/T864-201

- IEC 62073, IECTS 62073-2016

Main parameters:

1. Contact angle measurement

1-1. Analysis algorithm: high volume method, angle method, ring method, ellipse method, tangent method, Y-L method
1-2. Separate testing and comparison functions for left contact angle, right contact angle and average contact angle
1-3. With concave, convex, curved, super hydrophilic, super hydrophobic and other special surface analysis functions
1-4. Analysis function of irregular and non-axisymmetric intrinsic contact angle
1-5. The test data can be marked on the picture and saved with the picture
1-6. Measuring range: 0°～180°
1-7. Measurement accuracy: ±0.1°
1-8. A calibration block can be purchased separately for full-range calibration of contact angle measurement accuracy
1-9. Measurement resolution: 0.001°

2. Surface energy estimation

2-1. Estimation models: Fowkes, extended Fowkes, Owens-Wendt, van OSS,
Wu harmonic average method, state equation method
2-2. The solid surface energy, dispersion force, polar force, hydrogen bonding force, van der Waals component,
Lewis acid component, Lewis base component, etc.
2-3. Liquid database: preset 37 kinds of commonly used liquid surface tension and its component data,
Data can be directly imported for surface energy estimation
2-4. Liquid library data can be added, deleted and modified by itself

3. Image shooting

3-1. Single shooting, continuous shooting, video recording and picture playback
3-2. Can choose to use the camera's external hairpin function to automatically shoot

4. Optical imaging system

Camera	3 million pixels, frame rate 36 frames per second
Lens	0.7～4.5×continuous zoom, working distance 95mm
Focusing range	±12.5mm; focusing accuracy: 0.25mm
Pan and tilt adjustment range	±2°
Backlight	LED cold light source + shading board, infinite brightness adjustment

The software automatically detects the clarity when adjusting the focus to eliminate human error

5. Drip system

5-1. Dispensing method: Differential head controls sampler dripping
5-2. Dropping accuracy: ±1μl

6. Sample table

Table size	X100×Y110mm
Moving stroke	X86×Y100×Z50mm
Movement mode	manual knob to control three-dimensional movement positioning

7. Host parameters

Size	about W550×D180×H520mm
Weight	about 15kg
Power supply	1∮ AC220V 50HZ
