Charpy Pendulum Impact Test

ASTM D256 Charpy Pendulum Impact Tester Testing Machine for Plastic and Steel Products

Product Description:

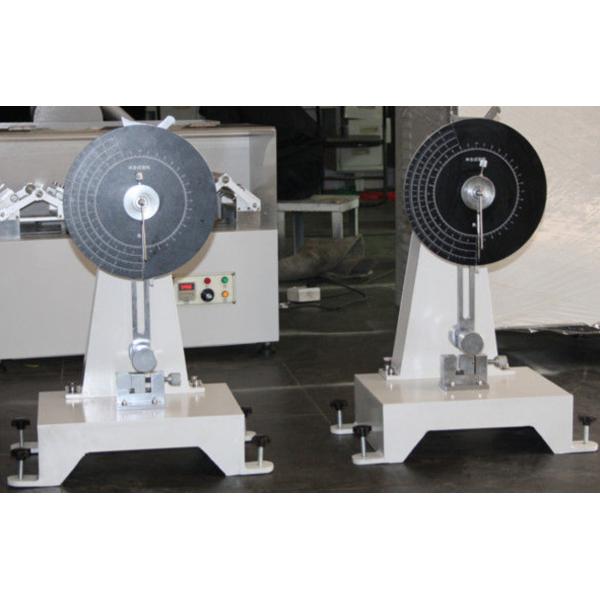

Pendulum Impact Testing Machine is mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load. This machine can be operated semi-automatically. The pendulum of the machine can be raised or released automatically. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories.

Design criteria:

ASTM D256,JIS-K7110,ISO-180,GB/T21189-2007

Features:

1. Pendulum rising, impact, free releasing is realized as automatically by micro control meter or remote control box

2. Safety pin guaranties the impact action, standard protection shell to avoid any accident

3. Pendulum will automatically rising and ready for next impact action after specimen breakout

4. with two pendulums (big and small), LCD touching screen display the energy loss, impact tenacity, rising angle, and test average value, meantime the dial scale show test result as well

5. Built-in micro printer to print test result

Specifications:

Capacity	2.75J/5.5J
Impact Speed	3.4m/sec(11ft/sec)
Test Angle	150°
Pendulum length	330mm
Specimen size(L×W×H)	10×10×55mm3
Dimension(W×D×H)	52×30×72cm3
Weight	55kg
